LkCa4 EXSPLOSYN H band Spectral Variations

This page hosts the full-resolution companion animations for my PhD thesis, Characterization of Young Active Stars for Identifying the Youngest Exoplanets.

H-band Spectral Comparison

The animation below corresponds to Chapter 4.5, Figure 4.26 of my thesis.

Click the animation to open the raw GIF in a new tab.

Description

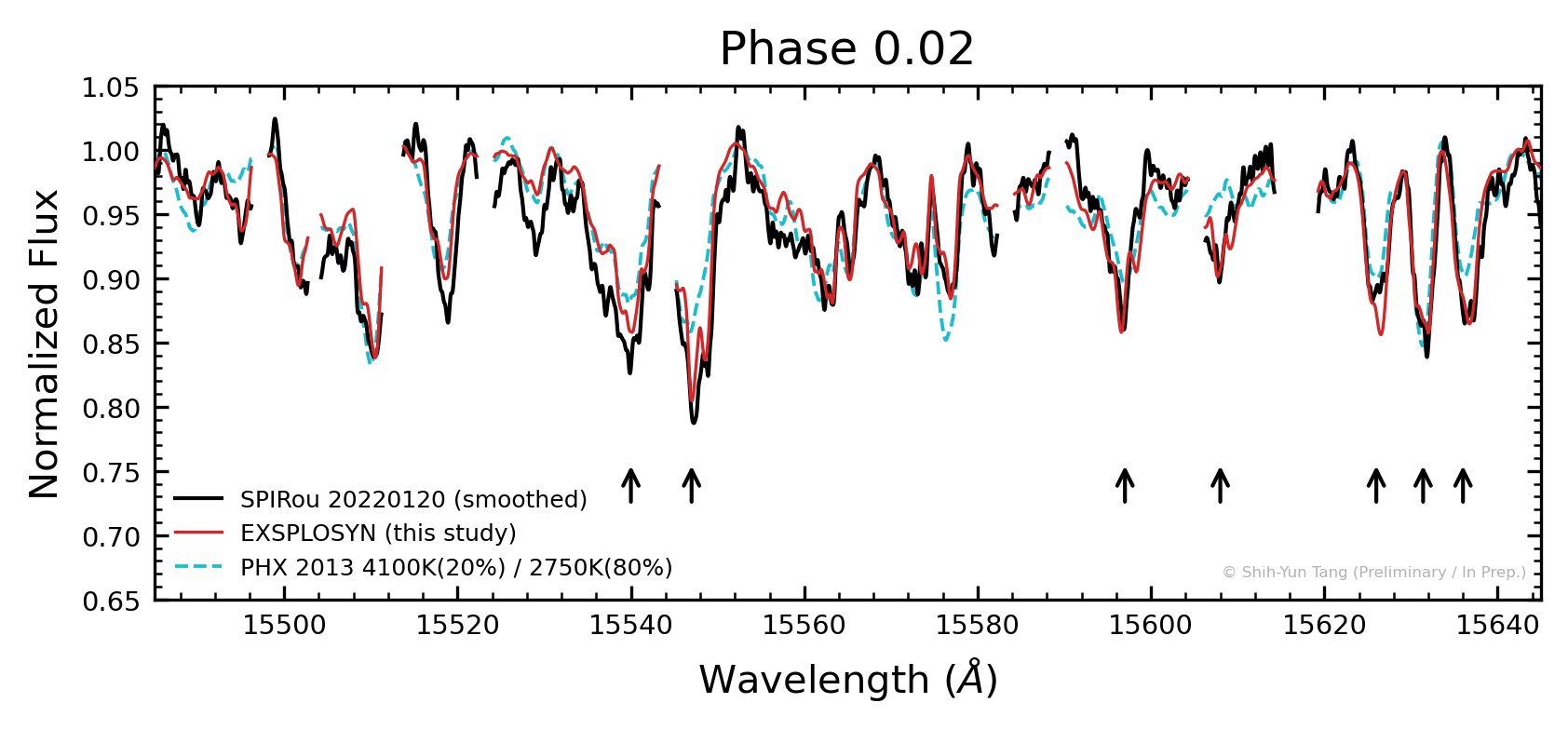

This animation tracks variations in the stellar spectrum as a function of rotational phase. The SPIRou observations are shown in black, while the best-fit forward modeling sequence from EXSPLOSYN is plotted in red. For comparison, the dashed blue line represents a standard two-component composite spectrum constructed using fixed atmospheric parameters ($T_{\rm phot} = 3914$ K, $T_{\rm spot} = 2769$ K, and a cool spot filling factor $f_{\rm cool} = 55%$) derived by Gully-Santiago et al. (2017).
